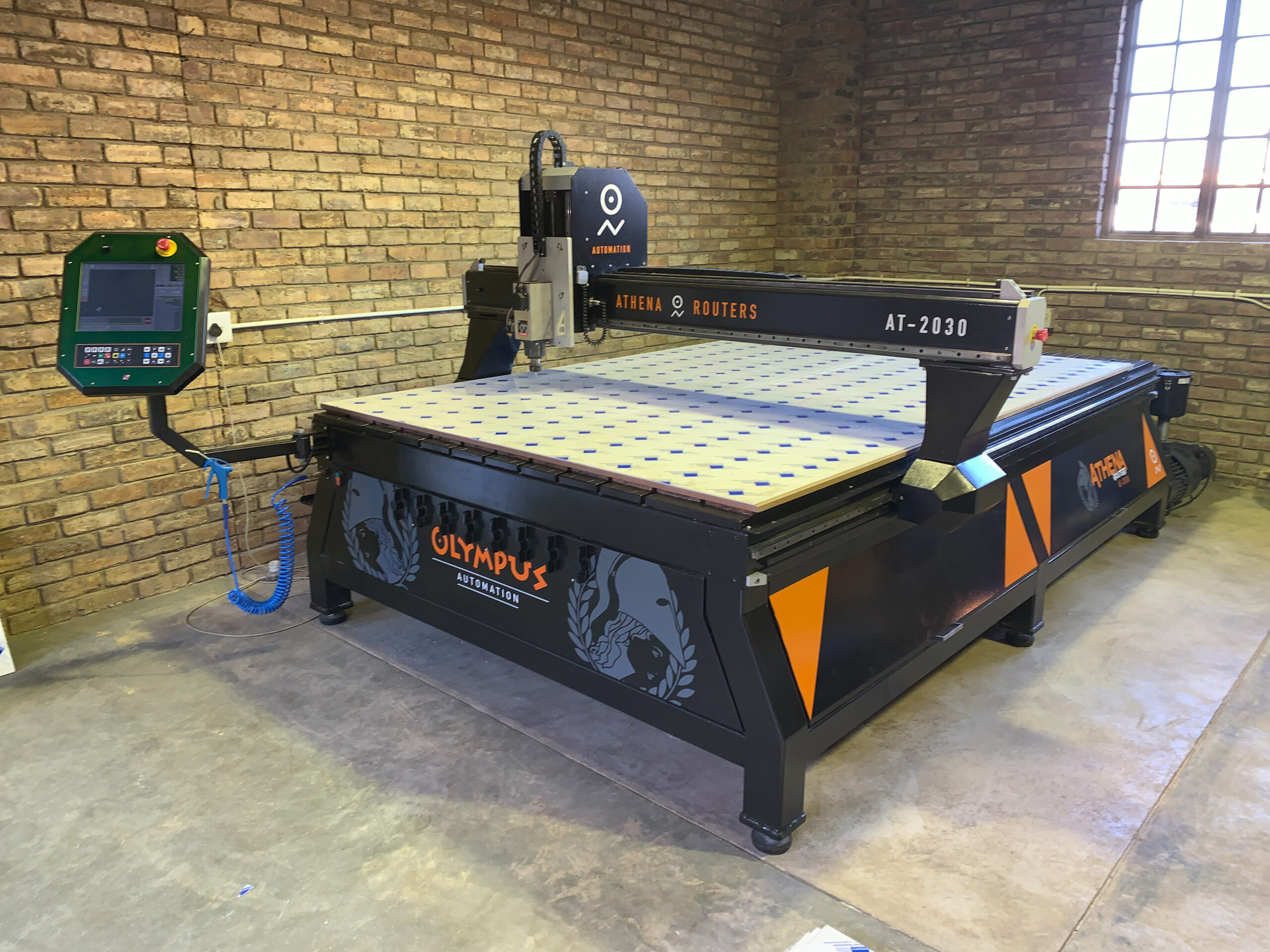

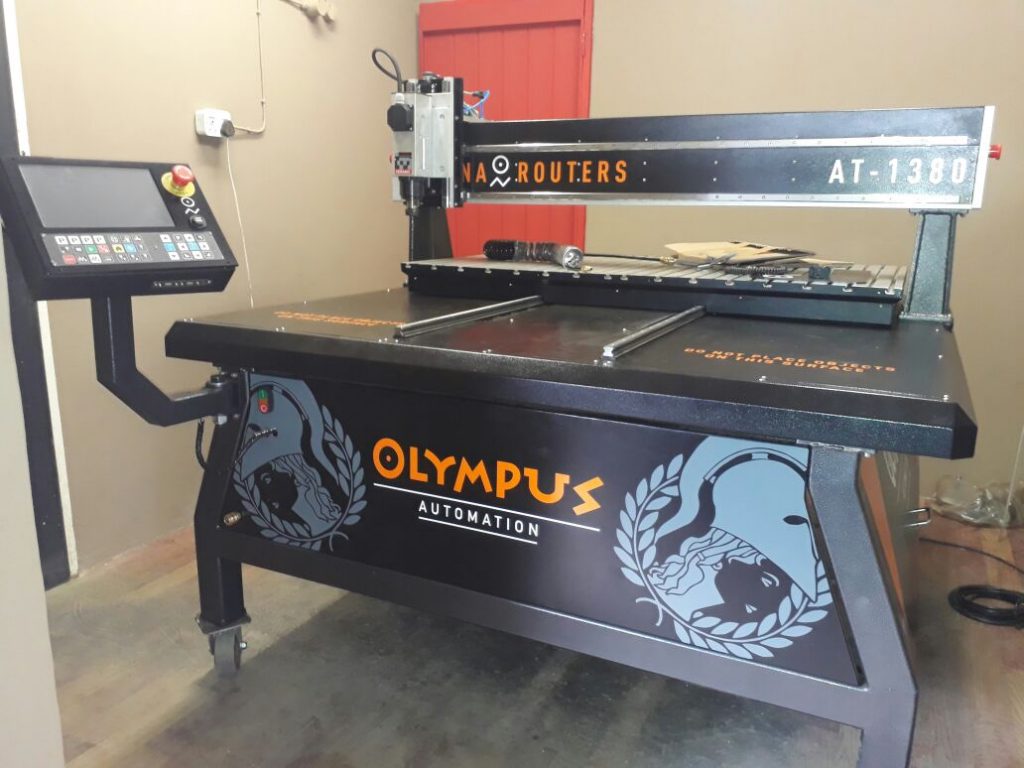

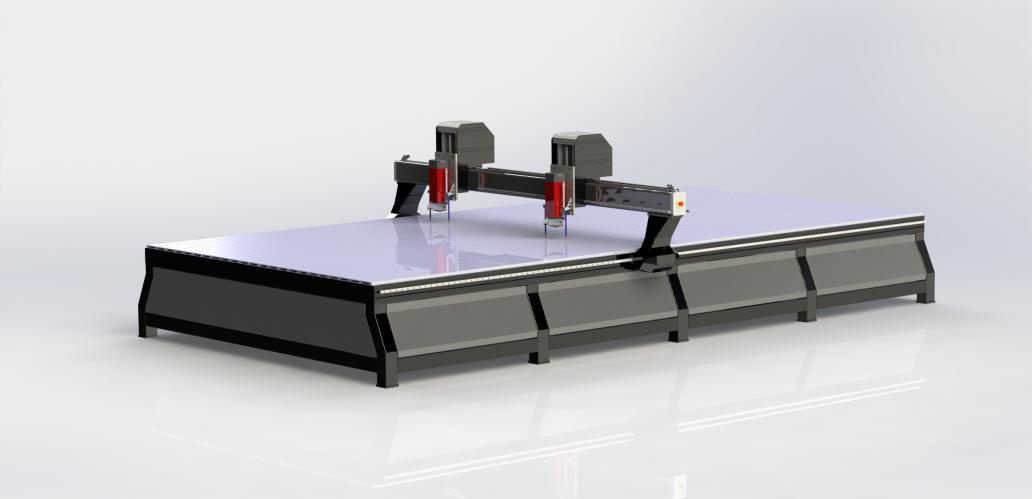

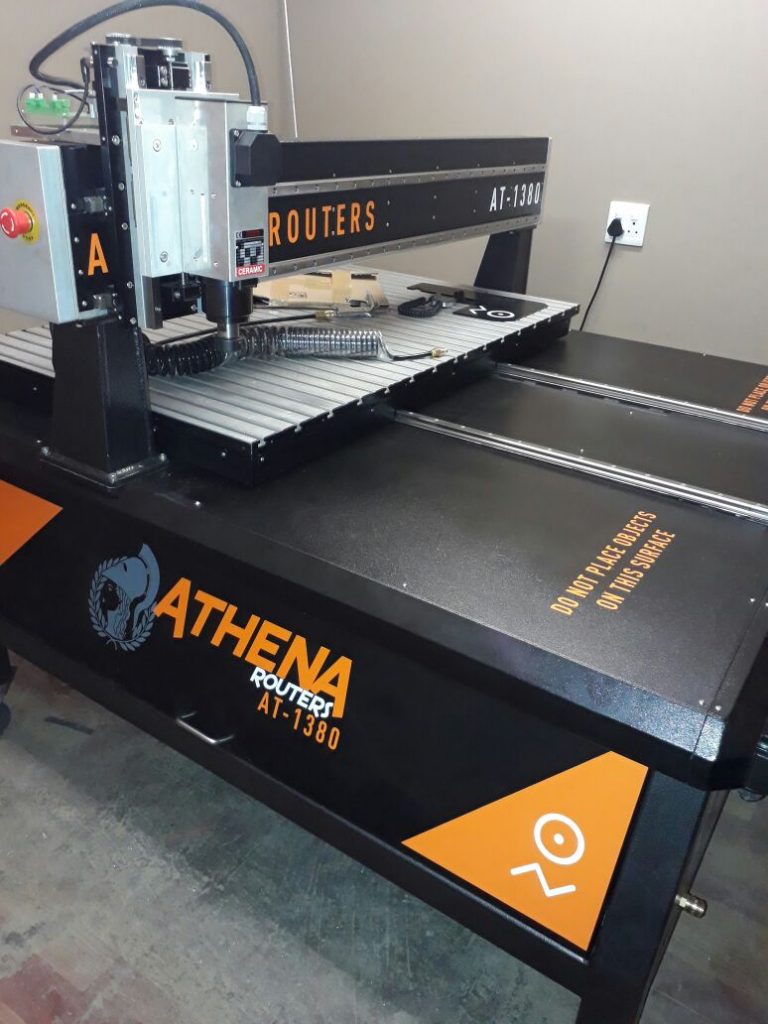

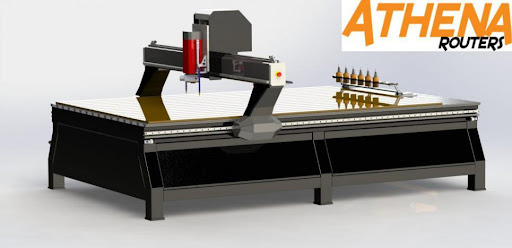

Athena AT-P CNC Router Professional series
Athena AT-P CNC Router Professional series
The flagship model of our CNC router range is ideal for Businesses looking for a fast, accurate and reliable CNC router. The Athena AT-P series CNC router is BUILT TO WORK and can get any job done with ease.
User Friendly
With the easy to use Plato CNC software, any operator can get to work in almost no time with minimal training required. All of our CNC machinery is uncomplicated and can get any job done with ease.
High Accuracy
Servo motors on all axis and the automatic tool sensor allows for repeatable high accuracy. The 25mm THK bearing rails and blocks combined with the module 2 helical rack and pinion drive on the X and Y axis allow for smooth motion.
Stable and Reliable
Olympus Automation strives to build the highest quality machines that are Built to Work. For this reason we use only the best parts and manufacturing processes to produce the highest of quality machines that will stand the test of time.
User Friendly
With the easy to use Plato CNC software, any operator can get to work in almost no time with minimal training required. The Athena AT-P series CNC router is uncomplicated and can get any job done with ease.
High Accuracy
Servo motors on all axes and the automatic tool sensor allows for repeatable high accuracy. The 25mm bearing rails and blocks combined with the module 2 helical rack and pinion drive on the X and Y axis allow for smooth motion.
Stable and Reliable
Olympus Automation strives to build the highest quality machines that are Built to Work. For this reason we use only the best parts and manufacturing processes to produce the highest quality machines that will stand the test of time.
Available Sizes
- 1300mm x 2500mm
- 2000mm x 3000mm
- 1300mm x 4000mm
Custom sizes available upon request
Specifications/Features
| Motion | Servo motors on all axis |
| Design | Stress relieved heavy duty steel and Aluminium extrusion frame |
| Power supply | 380V 30A 3Ph |
| Work table | Vacuum bed |
| Controller | Olympus Automation Plato CNC touchscreen controller |
| Software | Vcarve |
| Bit Cooling | Mist Cooling System |
| Spindles | Teknomotor spindles |
Options
- Manual tool change spindle
- Automation tool change spindle
- Vacuum bed
- Vortex dust extraction system
- Auto loading table
- Board sweeper
- Cyclops vision system
