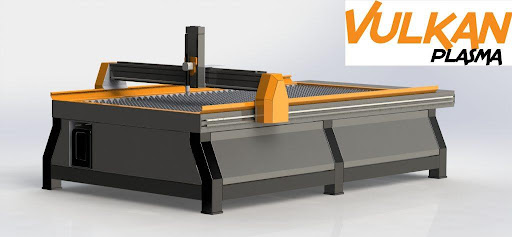

Vulkan VN-P (professional) Series
Vulkan VN-P (professional) Series
The Vulkan VN-P series is the ideal CNC plasma for fast and high accuracy cutting. It is the perfect addition to any factory or production house.
With our state of the art Plato CNC controller and advanced THC expect superior quality cuts at a fraction of the price. Combined with a High Definition plasma power pack you can achieve almost laser quality cuts!
User Friendly
With the easy to use Plato CNC software, any operator can get to work in almost no time with minimal training required. All of our CNC machinery is uncomplicated and can get any job done with ease.
High Accuracy
Servo motors on all axis and the automatic tool sensor allows for repeatable high accuracy. The 25mm THK bearing rails and blocks combined with the module 2 helical rack and pinion drive on the X and Y axis allow for smooth motion.
Stable and Reliable
Olympus Automation strives to build the highest quality machines that are Built to Work. For this reason we use only the best parts and manufacturing processes to produce the highest of quality machines that will stand the test of time.
Features
- Z Axis material sensor- Allows for repeatable accuracy
- Magnetic torch breakaway- automatically stops the cut process when the torch collides with an object
- Integrated Torch Height Control
- Waterbed work table
- Laser Pointer- Aids in setting the torch start position
- Pre loaded cut charts- simply select the type and thickness of the material and the rest is done for you
Available machine sizes
1250mm x 1250mm
1250mm x 2500mm
1500mm x 3000mm
Custom table sizes available upon request
Specifications
| Motion | Servo Motors on X and Y axis, Stepper motor on Z Axis |
| Design | Stress relieved heavy duty steel and aluminum extrusion frame |
| Power supply | 380V 30A 3Ph |
| Dust control | Waterbed and/or fume extraction |

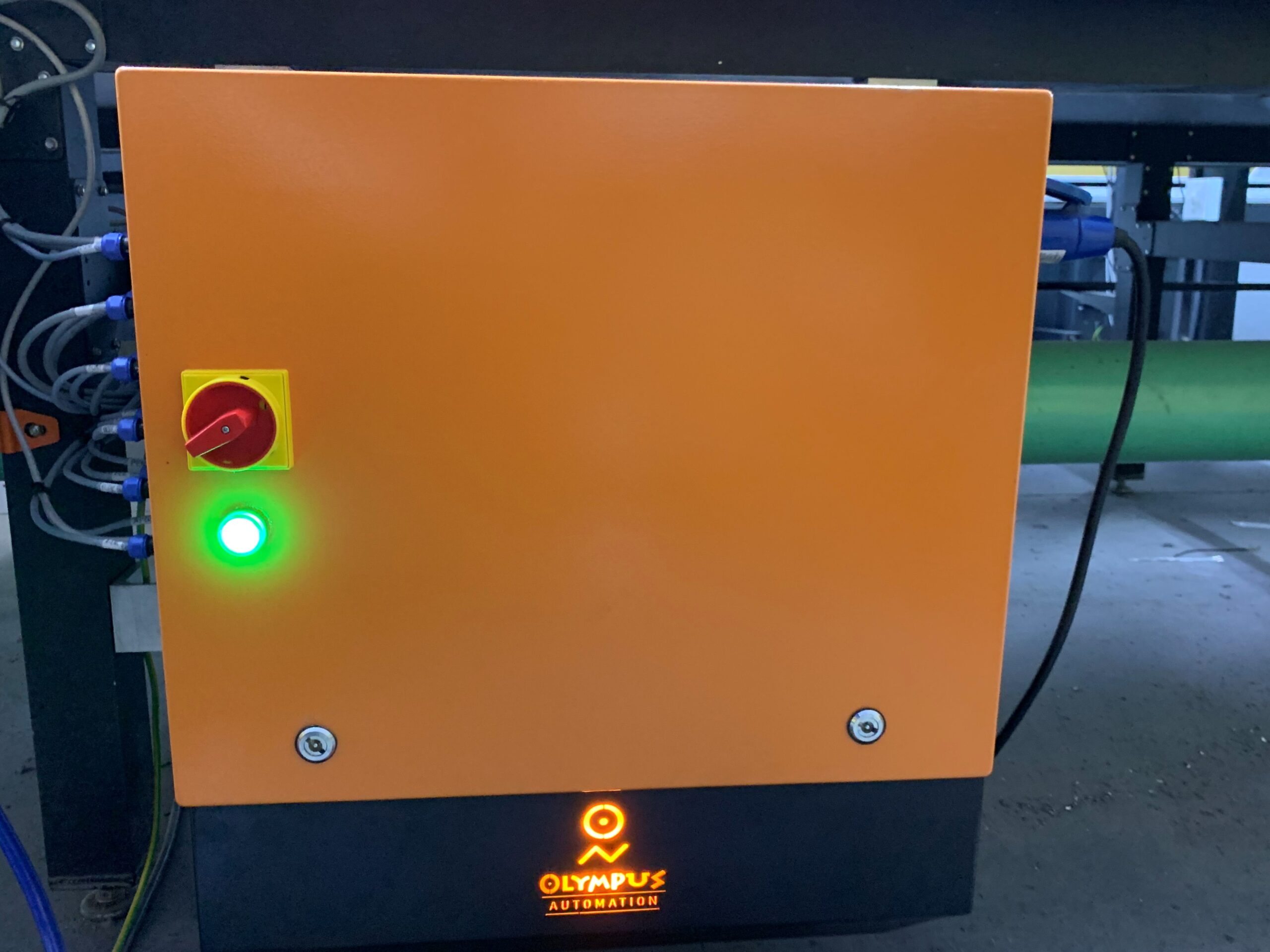

| Controller | Olympus Automation Plato CNC touchscreen controller |
| Software | SheetCam |
Power Pack options
PLEASE SEE PLASMA POWER PACK DOCUMENT
